Style Reports

                                                                                                                     -Dhanapathi

What is a Reporting Tool

 A software tool that allows end users to build professional business reports based on data in a database. These reports can then be scheduled to be run automatically at particular times or based on business rules and distributed a group of end consumers who are interested in the information.


Most 3rd party control developers would have their own reporting suite. A few of the larger known reporting tools are Crystal Reports, Active Reports, SQL Server Reporting Services, Telerik Reports etc.

In the current topic we are going to have a glance over InetSoft Style Reports. This topic doesn’t give you an in depth understanding of the tool, nevertheless you will be given an overall idea of what the tool is all about, its abilities and the system Requirements needed.

Style Report:-InetSoft which was established in 1996 as java Reporting tool provider which later on released its seminal software product called Style Report. InetSoft Style Report allows the users to create reports that can be deployed for Web based as well as Stand alone (Desktop based) applications. Its small footprint and purely Java Architectural nature made the industry choose it as an ideal choice for Embedded Reporting applications.

Style Report edition comes up with Reporting Engine, API (100% Java API), WYSIWYG, scriptable, professional authoring environment. Style report is based on XML, JavaScript and other open standards technology.

Features of Style Report:-

Multiple database Access: - Access to almost any open database format and specifically any relational database via Java database connectivity (JDBC), multidimensional databases, XML, SOAP, Java beans (POJO), enterprise Java beans (EJB), flat files, and Corba objects.

JSP Embedding Report: - InetSoft’s Java reporting engine is well-suited for embedding in your own JSP application, desktop or Web based.

J2EE reporting: - Ad hoc reporting wizards, production reports with business logic, scalable, high performance, secure and enterprise level development and deployment.

Query building: - Graphical Query builder; global Query and single report local Query building facilities.

Performance: - Multithreaded report Server, Configurable data cache; automatic page cache and swapping.

Production Report Design: - Dynamic expandable tables, configurable charting engine, localization and Internationalization.

Diagram1:-


Diagram1:- Using the Designer to convert the table data into a report.

Diagram2:-




Diagram2:- Obtained Report preview.



Export: - We can export the report to Excel, PowerPoint, PDF, RTF-Word, CSV, Postscript, Text and SVG formats.


System Requirements:-

Platform:- Intel, Sun, AIX, AS/400, any java capable

Operating System: - Windows (NT, Xp, 2003 and Vista), Linux, HP-Unix, Solaris, Mac/Os, JVM 1.5 or higher.

Data Sources: - JDBC (DB2, Oracle, Sybase, MS SQL Server, Informix, MySql, and ODBC), SOAP, Ejb’s, XML, CORBA, delimited text, POJO and custom defined sources.

Memory :- 512 MB minimum

Hard disk :- 500MB minimum

CPU:- 1.6GHz


Highlights: - This Java Reporting tool was awarded as Java Developers Journal Readers Choice Award for Best Java Reporting Tool. The first award came in 2000, and it marked the first in a string of 8 Best Java Reporting Tool awards in a row, a record to be proud of

Scrum

                                                                                                             -Rahul Gupta

What is Scrum?


A variation on Sashimi, an "all-at-once" approaches to software engineering. Both Scrum and Sashimi are suited best to new product development rather than extended development. Sashimi originated with the Japanese and their experiences with the Waterfall model. They had the same problems with the Waterfall model as everybody else, so they adapted it to suit their own style. Realizing that speed and flexibility are as important as high quality and low cost they reduced the number of phases to four -- requirements, design, prototype, and acceptance -- without removing any activities, which resulted in overlap of the Waterfall phases. Then they made the four phases overlap. (Sashimi is a way of presenting sliced raw fish where each slice rests partially on the slice before it). Other companies took Sashimi one step further, reducing

the phases to one and calling it Scrum. (A scrum is a team pack in Rugby, everybody in the pack acts together with everyone else to move the ball down the field).

Applying Scrum

For each Waterfall phase there is a pool of experienced people available, form a team by selecting one person from each pool. Call a team meeting and tell them that they have been selected to do an important project. Describe the project, include how long it's estimated to take, how much it is estimated to cost, how it is expected to perform, etc. Now tell them that their job is to do it in half the time, with half the cost, twice the performance, etc. Tell them how it's done is up to them and explain that your job is to support them with resources. Now leave.

Stand by, give advice if it's requested, and wait. Don't be surprised if a team member thinks the whole thing is insane and leaves. You'll get regular reports, but mostly you'll just wait. At somewhere around the expected time, the team will produce the system with the expected performance and cost.

How does Scrum work?

The first thing that happens is the initial leader will become primarily a reporter. The leadership role will bounce around within the team based on the task at hand. Soon QA developers will be learning how requirements are done and will be actively contributing, and requirements people will be seeing things from a QA point of view. As work is done in each of the phases, all the team learns and contributes, no work is done alone, the team is behind everything. From the initial meeting, the finished product is being developed. Someone can be writing code, working on functional specifications, and designing during the same day, i.e. "all-at-once". Don't be surprised if the team cleans the slate numerous times, many new ways will be picked up and many old ways discarded. The team will become autonomous, and will tend to transcend the initial goals, striving for excellence. The people on the team will become committed to accomplish the goal and some members may experience emotional pain when the project is completed.


Why does Scrum Work?

The basic premise is that if you are committed to the team and the project, and if your boss really trusts you, then you can spend time being productive instead of justifying your work. This reduces the need for meetings, reporting and authorization. There is control, but it is subtle and mostly indirect. It is exercised by selecting the right people, creating an open work environment, encouraging feedback, establishing an evaluation and reward program based on group performance, managing the tendency to go off in different directions early on, and tolerating mistakes. Every person on the team starts with an understanding of the problem, associates it with a range of solutions experienced and studied, then using skill, intelligence, and experience, will narrow the range to one or a few options.

Keep in mind that it can be difficult to give up the control that it takes to support the Scrum methodology. The approach is risky, there is no guarantee that the team will not run up against real limits, which could kill the project. The disappointment of the failure could adversely affect the team members because of the high levels of personal commitment involved. Each person on the team is required to understand all of the problem and all of the steps in developing a system to solve it, this may limit the size of the system developed using the methodology.


INVEST in Good Stories, and SMART Tasks

XP teams have to manage stories and tasks. The INVEST and SMART acronyms can remind teams of the good characteristics of each.

In XP, we think of requirements of coming in the form of user stories. It would be easy to mistake the story card for the "whole story," but Ron Jeffries points out that stories in XP have three components: Cards (their physical medium), Conversation (the discussion surrounding them), and Confirmation (tests that verify them).

A pidgin language is a simplified language, usually used for trade, which allows people who can't communicate in their native language to nonetheless work together. User stories act like this. We don't expect customers or users to view the system the same way that programmers do; stories act as a pidgin language where both sides can agree enough to work together effectively.

INVEST in Good Stories

But what are characteristics of a good story? The acronym "INVEST" can remind you that good stories are:

 I - Independent

 N - Negotiable

 V - Valuable

 E - Estimable

 S - Small

 T - Testable

Independent

Stories are easiest to work with if they are independent. That is, we'd like them to not overlap in concept, and we'd like to be able to schedule and implement them in any order.

We can't always achieve this; once in a while we may say things like "3 points for the first report, then 1 point for each of the others."

Negotiable... and Negotiated

A good story is negotiable. It is not an explicit contract for features; rather, details will be co-created by the customer and programmer during development. A good story captures the essence, not the details. Over time, the card may acquire notes, test ideas, and so on, but we don't need these to prioritize or schedule stories.

Valuable

A story needs to be valuable. We don't care about value to just anybody; it needs to be valuable to the customer. Developers may have (legitimate) concerns, but these framed in a way that makes the customer perceive them as important.

This is especially an issue when splitting stories. Think of a whole story as a multi-layer cake, e.g., a network layer, a persistence layer, a logic layer, and a presentation layer. When we split a story, we're serving up only part of that cake. We want to give the customer the essence of the whole cake, and the best way is to slice vertically through the layers. Developers often have an inclination to work on only one layer at a time (and get it "right"); but a full database layer (for example) has little value to the customer if there's no presentation layer.

Making each slice valuable to the customer supports XP's pay-as-you-go attitude toward infrastructure.

Estimable

A good story can be estimated. We don't need an exact estimate, but just enough to help the customer rank and schedule the story's implementation. Being estimable is partly a function of being negotiated, as it's hard to estimate a story we don't understand. It is also a function of size: bigger stories are harder to estimate. Finally, it's a function of the team: what's easy to estimate will vary depending on the team's experience. (Sometimes a team may have to split a story into a (time-boxed) "spike" that will give the team enough information to make a decent estimate, and the rest of the story that will actually implement the desired feature.)

Small

Good stories tend to be small. Stories typically represent at most a few person-weeks worth of work. (Some teams restrict them to a few person-days of work.) Above this size, and it seems to be too hard to know what's in the story's scope. Saying, "it would take me more than month" often implicitly adds, "as I don't understand what-all it would entail." Smaller stories tend to get more accurate estimates.

Story descriptions can be small too (and putting them on an index card helps make that happens). Alistair Cockburn described the cards as tokens promising a future conversation. Remember, the details can be elaborated through conversations with the customer.

Testable

A good story is testable. Writing a story card carries an implicit promise: "I understand what I want well enough that I could write a test for it." Several teams have reported that by requiring customer tests before implementing a story, the team is more productive. "Testability" has always been a characteristic of good requirements; actually writing the tests early helps us know whether this goal is met.

If a customer doesn't know how to test something, this may indicate that the story isn't clear enough, or that it doesn't reflect something valuable to them, or that the customer just needs help in testing.

A team can treat non-functional requirements (such as performance and usability) as things that need to be tested. Figure out how to operationalize these tests will help the team learn the true needs.

For all these attributes, the feedback cycle of proposing, estimating, and implementing stories will help teach the team what it needs to know.

SMART Tasks

There is an acronym for creating effective goals: "SMART" -

 S - Specific

 M - Measurable

 A - Achievable

 R - Relevant

 T - Time-boxed

(There are a lot of variations in what the letters stand for.) These are good characteristics for tasks as well.

Specific

A task needs to be specific enough that everyone can understand what's involved in it. This helps keep other tasks from overlapping, and helps people understand whether the tasks add up to the full story.

Measurable

The key measure is, "can we mark it as done?" The team needs to agree on what it means, but it should include "does what it is intended to," "tests are included," and "the code has been refactored."

Achievable

The task owner should expect to be able to achieve a task. XP teams have a rule that anybody can ask for help whenever they need it; this certainly includes ensuring that task owners are up to the job.

Relevant

Every task should be relevant, contributing to the story at hand. Stories are broken into tasks for the benefit of developers, but a customer should still be able to expect that every task can be explained and justified.

Time-Boxed

A task should be time-boxed: limited to a specific duration. This doesn't need to be a formal estimate in hours or days, but there should be an expectation so people know when they should seek help. If a task is harder than expected, the team needs to know it must split the task, change players, or do something to help the task (and story) get done.

Time estimation in Scrum using planning poker

Estimating is a team activity - every team member is usually involved in estimating every story. Why?

• As per Agile at the time of planning, we normally don’t know exactly who will be implementing which parts of which stories. Stories normally involve several people and different types of expertise (user interface design, coding, testing, etc).

• In order to provide an estimate, a team member needs some kind of understanding of what the story is about. By asking everybody to estimate each item, we make sure that each team member understands what each item is about. This increases the likelihood that team members will help each other out during the sprint. This also increases the likelihood that important questions about the story come up early.

• When asking everybody to estimate a story we often discover discrepancies where two different team members have wildly different estimates for the same story. That kind of stuff is better to discover and discuss earlier than later.

If you ask the team to provide an estimate, normally the person who understands the story best will be the first one to blurt one out. Unfortunately, this will strongly affect everybody else’s estimates.

There is an excellent technique to avoid this – it is called planning poker (coined by Mike Cohn I think).

Each team member gets a deck of 13 cards as shown above. Whenever a story is to be estimated, each team member selects a card that represents his time estimate (in story points) and places it face-down on the table. When all team members are done the cards on the table are revealed simultaneously. That way each team member is forced to think for himself rather than lean on somebody else’s estimate.


If there is a large discrepancy between two estimates, the team discusses the differences and tries to build a common picture of what work is involved in the story. They might do some kind of task breakdown. Afterwards, the team estimates again. This loop is repeated until the time estimates converge, i.e. all estimates are approximately the same for that story.

It is important to remind team members that they are to estimate the total amount of work involved in the story. Not just “their” part of the work. The tester should not just estimate the amount of testing work.

Note that the number sequence is non-linear. For example there is nothing between 40 and 100. Why?

This is to avoid a false sense of accuracy for large time estimates. If a story is estimated at approximately 20 story points, it is not relevant to discuss whether it should be 20 or 18 or 21. All we know is that it is a large story and that it is hard to estimate. So 20 is our ballpark guess. Want more detailed estimates? Split the story into smaller stories and estimate the smaller stories instead!

And NO, you can’t cheat by combining a 5 and a 2 to make a 7. You have to choose either 5 or 8, there is no 7.

Tuesday, March 30, 2010

UML Concepts-Part 1

                                                                                                         -SatyaSwathi

Concepts :


1) Use Case Diagram
2) Class Diagram
3) Object Diagram
4) Sequence Diagram
5) State Diagram
6) Activity Diagram
7) Package Diagram
8) Component Diagram
9) Deployment Diagram

In this post we'll discuss about Use Case Diagram and Class Diagram

1) Use Case Diagram

The Use case diagram is used to identify the primary elements and processes that form the system. The primary elements are termed as "actors" and the processes are called "use cases." The Use case diagram shows which actors interact with each use case.


A use case diagram captures the functional aspects of a system. More specifically, it captures the business processes carried out in the system. As you discuss the functionality and processes of the system, you discover significant characteristics of the system that you model in the use case diagram. Use case diagrams define the requirements of the system being modeled and hence are used to write test scripts for the modeled system.

Elements of a Use Case Diagram:

A use case diagram is quite simple in nature and depicts two types of elements: one representing the business roles and the other representing the business processes. Let us take a closer look at use at what elements constitute a use case diagram.


Actors: An actor portrays any entity (or entities) that performs certain roles in a given system. The different roles the actor represents are the actual business roles of users in a given system. An actor in a use case diagram interacts with a use case. For example, for modeling a banking application, a customer entity represents an actor in the application. Similarly, the person who provides service at the counter is also an actor. But it is up to you to consider what actors make an impact on the functionality that you want to model. If an entity does not affect a certain piece of functionality that you are modeling, it makes no sense to represent it as an actor. An actor is shown as a stick figure in a use case diagram depicted "outside" the system boundary, as shown in Figure 1.1.










To identify an actor, search in the problem statement for business terms that portray roles in the system. For example, in the statement "patients visit the doctor in the clinic for medical tests," "doctor" and "patients" are the business roles and can be easily identified as actors in the system.

Use case: A use case in a use case diagram is a visual representation of a distinct business functionality in a system. The key term here is "distinct business functionality." To choose a business process as a likely candidate for modeling as a use case, you need to ensure that the business process is discrete in nature. As the first step in identifying use cases, you should list the discrete business functions in your problem statement. Each of these business functions can be classified as a potential use case. Remember that identifying use cases is a discovery rather than a creation. As business functionality becomes clearer, the underlying use cases become more easily evident. A use case is shown as an ellipse in a use case diagram (see Figure 1.2).

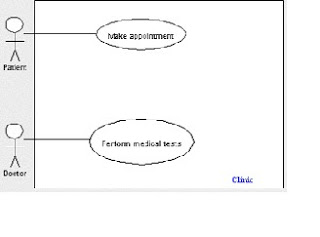

 Figure 1.2 shows two uses cases: "Make appointment" and "Perform medical tests" in the use case diagram of a clinic system. As another example, consider that a business process such as "manage patient records" can in turn have sub-processes like "manage patient's personal information" and "manage patient's medical information." Discovering such implicit use cases is possible only with a thorough understanding of all the business processes of the system through discussions with potential users of the system and relevant domain knowledge.


 System boundary: A system boundary defines the scope of what a system will be. A system cannot have infinite functionality. So, it follows that use cases also need to have definitive limits defined. A system boundary of a use case diagram defines the limits of the system. The system boundary is shown as a rectangle spanning all the use cases in the system








 Figure 1.3 shows the system boundary of the clinic application. The use cases of this system are enclosed in a rectangle. Note that the actors in the system are outside the system boundary.


The system boundary is potentially the entire system as defined in the problem statement. But this is not always the case. For large and complex systems, each of the modules may be the system boundary. For example, for an ERP system for an organization, each of the modules such as personnel, payroll, accounting, and so forth, can form the system boundary for use cases specific to each of these business functions. The entire system can span all of these modules depicting the overall system boundary.

Relationships in Use Cases:

Use cases share different kinds of relationships. A relationship between two use cases is basically a dependency between the two use cases. Defining a relationship between two use cases is the decision of the modeler of the use case diagram. This reuse of an existing use case using different types of relationships reduces the overall effort required in defining use cases in a system. A similar reuse established using relationships, will be apparent in the other UML diagrams as well. Use case relationships can be one of the following:

 Include: When a use case is depicted as using the functionality of another use case in a diagram, this relationship between the use cases is named as an include relationship. Literally speaking, in an include relationship, a use case includes the functionality described in the another use case as a part of its business process flow. An include relationship is depicted with a directed arrow having a dotted shaft. The tip of the arrowhead points to the parent use case and the child use case is connected at the base of the arrow. The stereotype "<>" identifies the relationship as an include relationship



For example, in Figure 1.4, you can see that the functionality defined by the "Validate patient records" usecase is contained within the "Make appointment" use case. Hence, whenever the "Make appointment" usecase executes, the business steps defined in the "Validate patient records" use case are also executed.

Extend: In an extend relationship between two use cases, the child use case adds to the existing functionality and characteristics of the parent use case. An extend relationship is depicted with a directed arrow having a dotted shaft, similar to the include relationship. The tip of the arrowhead points to the parent use case and the child use case is connected at the base of the arrow. The stereotype "<>" identifies as extend .



Above figure shows an example of an extend relationship between the "Perform medical tests" (parent) and "Perform Pathological Tests" (child) use cases. The "Perform Pathological Tests" use case enhances the functionality of the "Perform medical tests" use case. Essentially, the "Perform Pathological Tests" use case is a specialized version of the generic "Perform medical tests" use case.

• Generalizations: A generalization relationship is also a parent-child relationship between use cases. The child use case in the generalization relationship has the underlying business process meaning, but is an enhancement of the parent use case. In a use case diagram, generalization is shown as a directed arrow with a triangle arrowhead (see Figure 3.6). The child use case is connected at the base of the arrow. The tip of the arrow is connected to the parent use case.






On the face of it, both generalizations and extends appear to be more or less similar. But there is a subtle difference between a generalization relationship and an extend relationship. When you establish a generalization relationship between use cases, this implies that the parent use case can be replaced by the child use case without breaking the business flow. On the other hand, an extend relationship between use cases implies that the child use case enhances the functionality of the parent use case into a specialized functionality. The parent use case in an extend relationship cannot be replaced by the child use case.


Let us see if we understand things better with an example. From the diagram of a generalization relationship (refer to Figure 1.6), you can see that "Store patient records (paper file)" (parent) use case is depicted as a generalized version of the "Store patient records (computerized file)" (child) use case. Defining a generalization relationship between the two implies that you can replace any occurrence of the "Store patient records (paper file)" use case in the business flow of your system with the "Store patient records (computerized file)" use case without impacting any business flow. This would mean that in future you might choose to store patient records in a computerized file instead of as paper documents without impacting other business actions.

Now, if we had defined this as an extend relationship between the two use cases, this would imply that the "Store patient records (computerized file)" use case is a specialized version of the "Store patient records (paper file)" use case. Hence, you would not be able to seamlessly replace the occurrence of the "Store patient records (paper file)" use case with the "Store patient records (computerized file)" use case.

Significance:

• A set of use cases and actors and their relationships.

• Important for organizing and modeling system behaviors.

• Cruicial for requirements management and communication with end users using their own domain terminology.

• Uses very few symbols, all software independent

2) The Class Diagram

So, what is a class diagram? Imagine you were given a task of drawing a family tree. The steps you would take would be:


• Identify the main members of the family
• Determine how they are related to each other
• Identify the characteristics of each family member
• Find relations among family members
• Decide the inheritance of personal traits and characters

A class diagram is similar to a family tree. A class diagram consists of a group of classes and interfaces reflecting important entities of the business domain of the system being modeled, and the relationships between these classes and interfaces. The classes and interfaces in the diagram represent the members of a family tree and the relationships between the classes are analogous to relationships between members in a family tree. Interestingly, classes in a class diagram are interconnected in a hierarchical fashion, like a set of parent classes (the grand patriarch or matriarch of the family, as the case may be) and related child classes under the parent classes.Similarly, a software application is comprised of classes and a diagram depicting the relationship between each of these classes would be the class diagram.By definition, a class diagram is a diagram showing a collection of classes and interfaces, along with the collaborations and relationships among classes and interfaces.


A class diagram is a pictorial representation of the detailed system design. Design experts who understand the rules of modeling and designing systems design the system's class diagrams. A thing to remember is that a class diagram is a static view of a system. The structure of a system is represented using class diagrams. Class diagrams are referenced time and again by the developers while implementing the system.When you designed the use cases, you must have realized that the use cases talk about "what are the requirements" of a system. The aim of designing classes is to convert this "what" to a "how" for each requirement. Each use case is further analyzed and broken up into atomic components that form the basis for the classes that need to be designed.

Elements of a Class Diagram:

A class diagram is composed primarily of the following elements that represent the system's business entities.

Class: A class represents an entity of a given system that provides an encapsulated implementation of certain functionality of a given entity. These are exposed by the class to other classes as methods. Apart from business functionality, a class also has properties that reflect unique features of a class. The properties of a class are called attributes. Simply put, individual members of a family of our family tree example are analogous to classes in a class diagram.

As an example, let us take a class named Student. A Student class represents student entities in a system. The Student class encapsulates student information such as student id #, student name, and so forth. Student id, student name, and so on are the attributes of the Student class. The Student class also exposes functionality to other classes by using methods such as getStudentName(), getStudentId(), and the like. Let us take a look at how a class is represented in a class diagram.

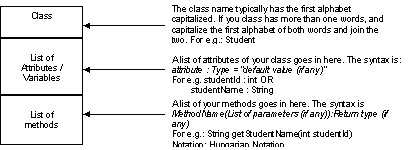

A class is represented by a rectangle. The following diagram shows a typical class in a class diagram:




If you are familiar with object-oriented concepts, you will be aware of the concept of access modifiers. You can apply access modifiers such as public access, protected access, and private access applied to methods and attributes of a class—even to a class as well, if required. These access modifiers determine the scope of visibility of the class and its methods and attributes.


You also can add documentation information to a class. Notes and constraints can be added to a list of attributes. Notes contain additional information for reference while developing the system, whereas constraints are the business rules that the class must follow, and are text included in curly brace brackets.

During the early phase of the system design conception, classes called Analysis classes are created. Analysis classes are also called stereotypes. In the UML context, stereotypes are UML models that represent an existing UML element, while showing additional characteristics that are common across the classes to be used for that application. Only one stereotype can be created for any UML element in the same system.

Analysis classes are of the following types as per their behavior, as shown in the following table:

Class Behavior:


Boundary :In an ideal multi tier system, the user interacts only with the boundary classes. For example, JSPs in a typical MVC architecture form the boundary classes.

Control: These classes typically don't contain any business functionality. However, their main task is to transfer control to the appropriate business logic class, depending on a few inputs received from the boundary classes.

Entity :These classes are those that contain the business functionality. Any interactions with back-end systems are generally done through these classes.

Interface: An interface is a variation of a class. As we saw from the previous point, a class provides an encapsulated implementation of certain business functionality of a system. An interface on the other hand provides only a definition of business functionality of a system. A separate class implements the actual business functionality.


So, why would a class not suffice? You can define an abstract class that declares business functionality as abstract methods. A child class can provide the actual implementation of the business functionality. The problem with such an approach is that your design elements get tied together in a hierarchy of classes. So, even though you may not have intended to connect your design elements representing drastically different business entities, that is what might result. Hence, the use of the interface design construct in class diagrams. Different classes belonging to different and discrete hierarchies can maintain their distinct hierarchies and still realize the functionality defined in the methods of the interface.

An interface shares the same features as a class; in other words, it contains attributes and methods. The only difference is that that the methods are only declared in the interface and will be implemented by the class implementing the interface.

In addition to the above, there is one more element used in class diagrams:

Package: A package provides the ability to group together classes and/or interfaces that are either similar in nature or related. Grouping these design elements in a package element provides for better readability of class diagrams, especially complex class diagrams.

Relationships between Classes:


In a class diagram, obviously you can't have classes just floating around; you need to see the relationship between them. The following table shows the kinds of relationships between classes, their notation, and what they mean.


1 Association



When two classes are connected to each other in any way, an association relation is established. For example: A "student studies in a college" association can be shown as:

1 a. Multiplicity



An example of this kind of association is many students belonging to the same college. Hence, the relation shows a star sign near the student class (one to many, many to many, and so forth kind of relations).

1 b. Directed Association

Association between classes is bi-directional by default. You can define the flow of the association by using a directed association. The arrowhead identifies the container-contained relationship.

1 c. Reflexive Association:


No separate symbol. However, the relation will point back at the same class. An example of this kind of relation is when a class has a variety of responsibilities. For example, an employee of a college can be a professor, a housekeeper, or an administrative assistant.

2 Aggregation



When a class is formed as a collection of other classes, it is called an aggregation relationship between these classes. It is also called a "has a" relationship.

2 a. Composition

Composition is a variation of the aggregation relationship. Composition connotes that a strong life cycle is associated between the classes.

3 Inheritance/Generalization



Also called an "is a" relationship, because the child class is a type of the parent class. Generalization is the basic type of relationship used to define reusable elements in the class diagram. Literally, the child classes "inherit" the common functionality defined in the parent class.

4 Realization



In a realization relationship, one entity (normally an interface) defines a set of functionalities as a contract and the other entity (normally a class) "realizes" the contract by implementing the functionality defined in the contract.

Significance:

• A set of classes, interfaces, collaborations, and relationships

• Reflects the static design of a system.

• Can be confusing if used to explain system dynamics; use less abstract Object Diagrams instead.

Watch out here for interesting continuation on other types of UML diagrams









Selenium

                                                                                                  -Sudhamayi

What is Selenium:

Selenium is a robust set of tools that supports rapid development of test automation for web-based applications. Selenium provides a rich set of testing functions specifically geared to the needs of testing of a web application. These operations are highly flexible, allowing many options for locating UI elements and comparing expected test results against actual application behaviour.

One of Selenium’s key features is the support for executing one’s tests on multiple browser platforms.

Who should use it ?

• Developers can use it - for “browser” regression testing ( and replace htmlunit/httpunit in some cases) .

• It should really be used by Business Analyst first .

• QA should enhance/use it do regression test/cross browsers testing on all platforms .

Components of Selenium:

Selenium-IDE :

Selenium-IDE is the Integrated Development Environment for building Selenium test cases. It operates as a Firefox add-on and provides an easy-to-use interface for developing and running individual test cases or entire test suites. Selenium-IDE has a recording feature, which will keep account of user actions as they are performed and store them as a reusable script to play back. It also has a context menu (right-click) integrated with the Firefox browser, which allows the user to pick from a list of assertions and verifications for the selected location. Selenium-IDE also offers full editing of test cases for more precision and control.

Although Selenium-IDE is a Firefox only add-on, tests created in it can also be run against other browsers by using Selenium-RC and specifying the name of the test suite on the command line.

Selenium-RC (Remote Control):

Selenium-RC allows the test automation developer to use a programming language for maximum flexibility and extensibility in developing test logic. For instance, if the application under test returns a result set, and if the automated test program needs to run tests on each element in the result set, the programming language’s iteration support can be used to iterate through the result set, calling Selenium commands to run tests on each item.

Selenium-RC provides an API (Application Programming Interface) and library for each of its supported languages: HTML, Java, C#, Perl, PHP, Python, and Ruby. This ability to use Selenium-RC with a high-level programming language to develop test cases also allows the automated testing to be integrated with a project’s automated build environment.

Selenium-Grid:

Selenium-Grid allows the Selenium-RC solution to scale for large test suites or test suites that must be run in multiple environments. With Selenium-Grid, multiple instances of Selenium-RC are running on various operating system and browser configurations; Each of these when launching register with a hub. When tests are sent to the hub they are then redirected to an available Selenium-RC, which will launch the browser and run the test. This allows for running tests in parallel, with the entire test suite theoretically taking only as long to run as the longest individual test.

A closer look at Selenium IDE:

Selenium IDE is very easy to install . We can also run scripts from Selenium IDE. It’s simple to use and us recommended for less-technical users. The IDE allows developing and running tests without the need for programming skills as required by Selenium-RC. The Selenium-IDE can serve as an excellent way to train junior-level employees in test automation. Anyone who understands how to conduct manual testing of a website can easily transition to using the Selenium-IDE for running and developing tests.

Introducing Selenium Commands:

Selenium Commands – Selenese:

Selenium provides a rich set of commands for fully testing your web-app in virtually any way you can imagine. The command set is often called selenese. These commands essentially create a testing language.

In selenese, one can test the existence of UI elements based on their HTML tags, test for specific content, test for broken links, input fields, selection list options, submitting forms, and table data among other things. In addition Selenium commands support testing of window size, mouse position, alerts, Ajax functionality, pop up windows, event handling, and many other web-application features.

A command is what tells Selenium what to do. Selenium commands come in three “flavors”: Actions, Accessors and Assertions.

Actions are commands that generally manipulate the state of the application. They do things like “click this link” and “select that option”. If an Action fails, or has an error, the execution of the current test is stopped.

Many Actions can be called with the “AndWait” suffix, e.g. “clickAndWait”. This suffix tells Selenium that the action will cause the browser to make a call to the server, and that Selenium should wait for a new page to load.

Accessors examine the state of the application and store the results in variables, e.g. “storeTitle”. They are also used to automatically generate Assertions.

Assertions are like Accessors, but they verify that the state of the application conforms to what is expected. Examples include “make sure the page title is X” and “verify that this checkbox is checked”.

All Selenium Assertions can be used in 3 modes: “assert”, “verify”, and ” waitFor”. For example, you can “assertText”, “verifyText” and “waitForText”. When an “assert” fails, the test is aborted. When a “verify” fails, the test will continue execution, logging the failure. This allows a single “assert” to ensure that the application is on the correct page, followed by a bunch of “verify” assertions to test form field values, labels, etc.

Selenium commands are simple, they consist of the command and two parameters. For example:

verifyText //div//a[2] Login

The parameters are not always required; it depends on the command. In some cases both are required, in others one parameter is required, and in still others the command may take no parameters at all.

Selenium scripts that will be run from Selenium-IDE may be stored in an HTML text file format. This consists of an HTML table with three columns. The first column identifies the Selenium command, the second is a target, and the final column contains a value. The second and third columns may not require values depending on the chosen Selenium command, but they should be present. Each table row represents a new Selenium command

Commonly Used Selenium Commands:

These are probably the most commonly used commands for building test.

  • open -opens a page using a URL.
  • click/clickAndWait -performs a click operation, and optionally waits for a new page to load.
  • verifyTitle/assertTitle -verifies an expected page title.
  • verifyTextPresent -verifies expected text is somewhere on the page.
  • verifyElementPresent -verifies an expected UI element, as defined by its HTML tag, is present on the page.
  • verifyText -verifies expected text and it’s corresponding HTML tag are present on the page.
  • verifyTable -verifies a table’s expected contents.
  • waitForPageToLoad -pauses execution until an expected new page loads. Called automatically when clickAndWait is used.
  • waitForElementPresent -pauses execution until an expected UI element, as defined by its HTML tag, is present on the page.

Advantages of Selenium:

Selenium is highly flexible. There are multiple ways in which one can add functionality to Selenium’s framework to customize test automation for one’s specific testing needs. This is, perhaps, Selenium’s strongest characteristic when compared with proprietary test automation tools and other open source solutions. Selenium-RC support for multiple programming and scripting languages allows the test writer to build any logic they need into their automated testing and to use a preferred programming or scripting language of one’s choice.

Selenium-IDE allows for the addition of user-defined “user-extensions” for creating additional commands customized to the user’s needs. Also, it is possible to re-configure how the Selenium-IDE generates its Selenium-RC code. This allows users to customize the generated code to fit in with their own test frameworks. Finally, Selenium is an Open Source project where code can be modified and enhancements can be submitted for contribution.

Simple demonstration of Selenium usage:

Please click on the below link to view a simple demonstration of Selenium usage. You need to have Webex player to view the demo.

Selenium Demo

JavaFX


                                                                                                         -Sekhar

















 Archirecture:







 Tools:















JavaFX is available for both developers  and designers as:

• plug in for Eclipse IDE, Netbeans IDE


• plug in for Adobe Photoshop, Adobe Illustrator, JavaFX Media Factory

• stand alone SDK

JavaFX Mobile Emulator:

A tool provided with the JavaFX SDK, which displays applications as they would look on a typical mobile device



















Example:





















To see more examples JavaFX applications: www.javafx.com/samples
To learn more about JavaFX: www.javafx.com/learn
